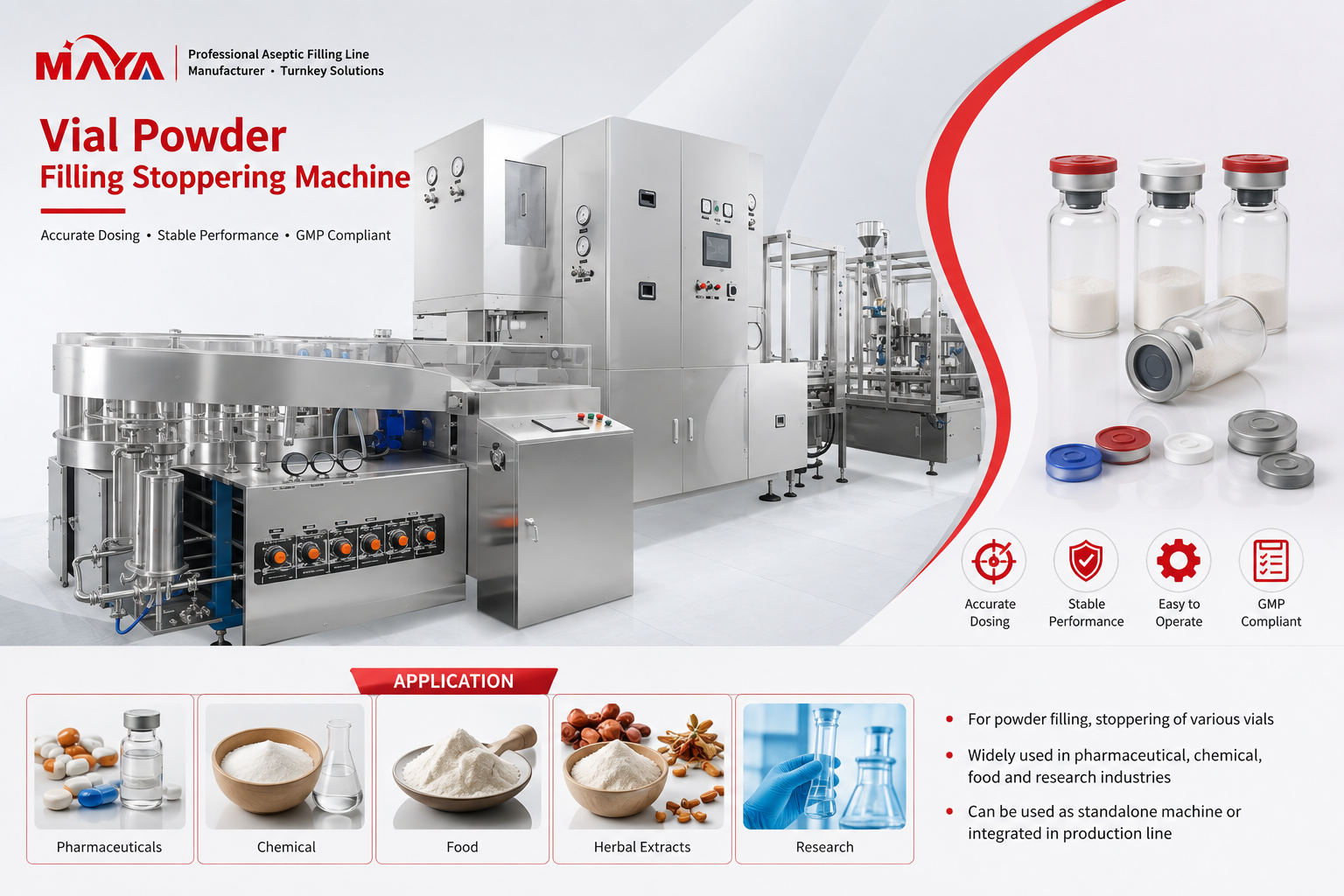

Vial Powder Filling Stoppering Machine

Product Introduction：
The Vial Powder Filling and Stoppering Machine is designed for accurate pharmaceutical powder dosing and automatic vial stoppering. It receives sterilized vials, completes powder filling and inserts rubber stoppers in one automated process.
The compact standalone design is suitable for manufacturers that already have vial washing and sterilization equipment or need to upgrade an existing powder-filling section.

Key Benefits：

Accurate pharmaceutical powder dosing
Automatic vial feeding and positioning
No bottle, no filling
Automatic stopper feeding and insertion
Adjustable filling parameters
PLC touchscreen control
Variable-frequency speed regulation
Compact standalone structure
Connects with sterilization tunnels and capping machines
Customized for different vial and powder specifications


توافر الحالة:



رسالتك سلة الاستفسارات

Product Features

Technical Parameters

Application

Product Features

Precision Powder Dosing

The dosing system can be configured according to powder density, flowability, filling quantity and vial-opening size.

Automatic Stoppering

Rubber stoppers are automatically sorted, fed and inserted after filling. Full or partial stoppering can be configured according to the production process.

Intelligent Detection

Sensors detect vial presence and abnormal feeding conditions to reduce powder loss and incomplete products.

Easy Line Integration

The machine can connect with vial sterilization tunnels, capping machines, inspection systems and labeling equipment.

Technical Parameter

Product Model	MYXF-1	MYXF-2	MYXF-3	MYXF-4
Production Capacity(1ml)	100	200	300	400
Specification	2-100ml	2-100ml	2-30ml	2-30ml
Power Supply	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz
Power	80Kw	95Kw	105Kw	125Kw
Water for Injection	0.6m3/h	0.8m3/h	1m3/h	1.2m3/h
Dosage of Vacuum	80m3/h	100m3/h	120m3/h	120m3/h
Dimensions LxWxH(mm)	15000x5000x2600	18000x5000x2600	20000x5000x2600	24000x5000x2600

Application

This machine is mainly suitable for filling, stoppering and cap screwing (capping) of various powder bottles, such as penicillin powder, collagen powder, leech powder, bovine powder, Ganoderma lucidum powder, toad powder, bear gall powder, Chinese herbal medicine fine powder, Ice boron powder, pesticide powder, pepper powder, etc. It is widely applied in such fields as pharmaceutical, chemical and food industries and scientific research. It can be used separately or in linkage production line. It is fully GMP comply.
